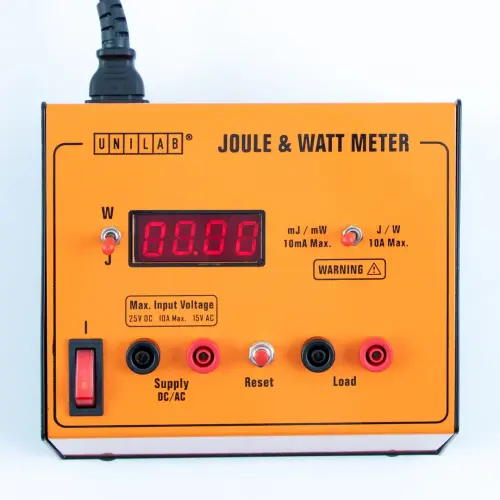

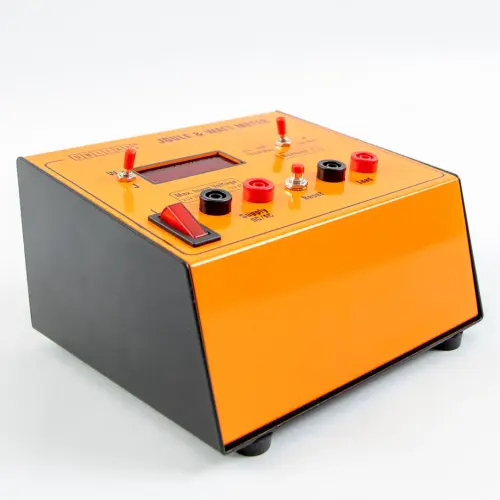

The unit is ideal for accurate measurement of either cumulative electrical energy delivered to a load from a power supply, or instantaneous power. A range of experiments are possible from simple investigations into specific heat capacity to measurement of energy stored in LCR Circuits.

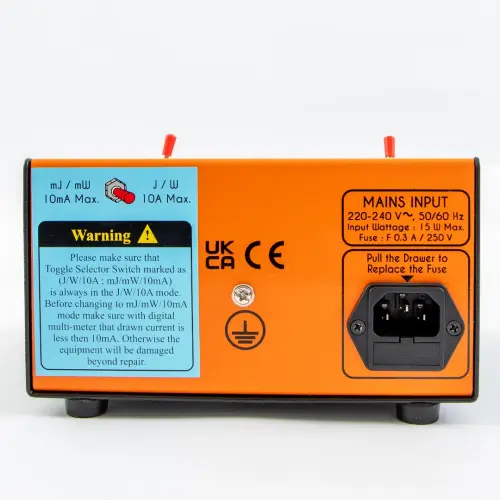

The device can accept AC and DC power with a maximum of 25V DC & 15V AC and a maximum capacity of 10A. The device has two ranges one for Joules & Watts and the other for mJ & mW. The device should be used in the J & W setting unless the correct setup is in place for mJ & mW as a maximum of 10mA is the limit for this mode.

Features:

• Display: 4-digit, LED display
• Input: 24V DC max or 15V rms AC max.
• Capacity: 10A max or 10mA in mJ/mW mode

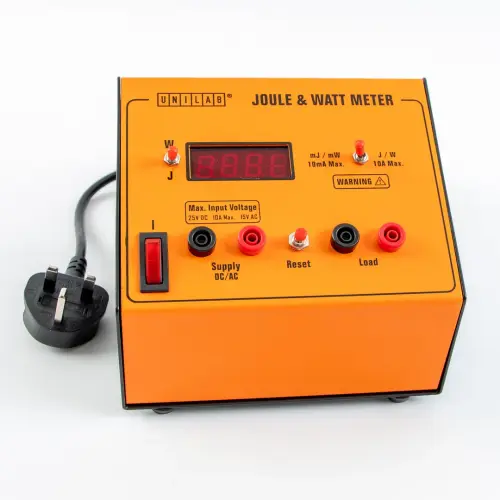

• Power: Mains unit with 1.8m of 3-core cable, illuminated ON/OFF Switch & 1A fuse.
• 4-digit LED display of either energy delivered or power supplied

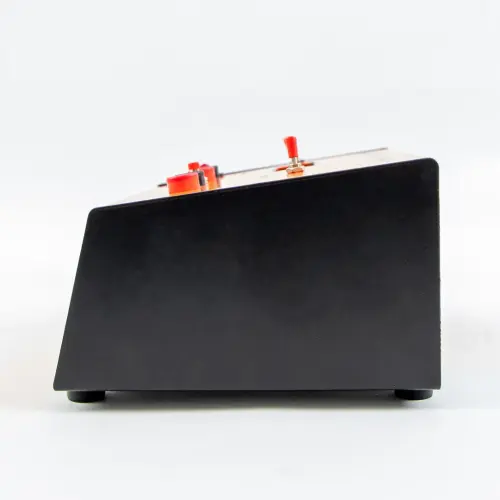

• Dimensions:
  • Width: 175mm
  • Height: 100mm
  • Length: 160mm
• An instruction manual of experiments is included
• This device is compliant to EN61010-2010 with certificates available on request
