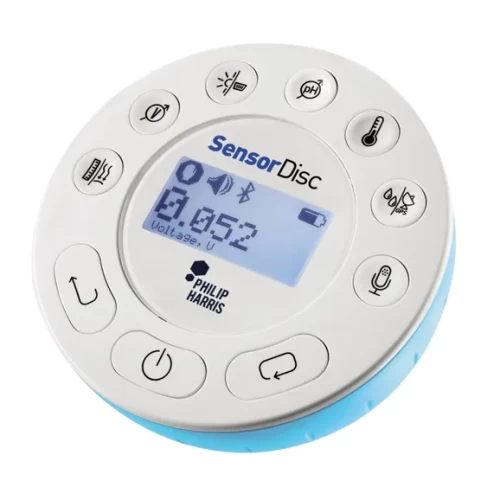

The SensorDisc is a unique Datalogging solution for school science with up to 12 sensors built into a single compact and wireless datalogger. There is no need to buy extra sensors in order to carry out a wide range of school science experiments.

With the SensorDisc students can measure a long list of parameters which include:

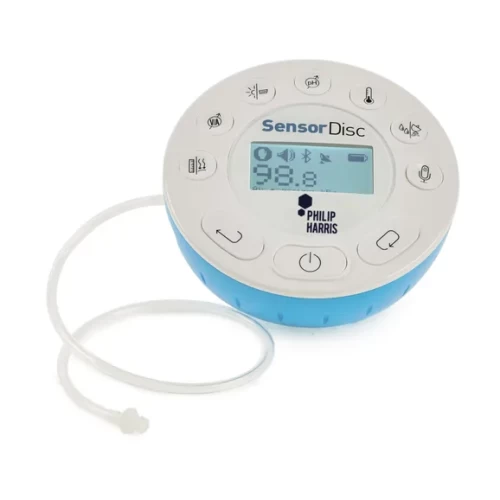

• Air Pressure (using the included air pressure tube)
• Ambient Temperature
• External Temperature (using the included temperature probe)
• Current and Voltage (using the included 2mm to 4mm connecting leads)
• Distance
• Light
• Sound Level
• Microphone

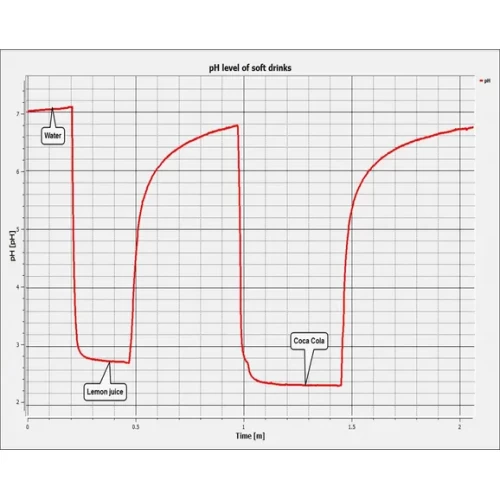

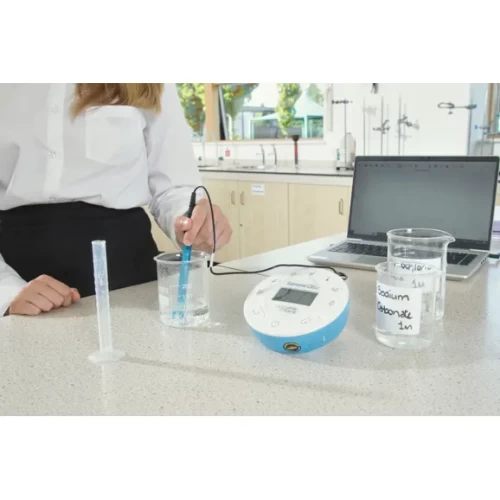

• pH (using the included pH electrode)
• Relative Humidity
• GPS

An additional universal sensor input enables students to add additional external sensors such as a Photogate or Carbon Dioxide sensor.

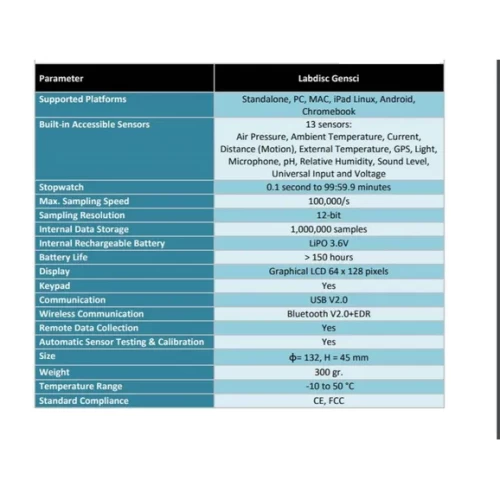

The SensorDisc is a powerful datalogger which offers a large memory of 1 000 000 samples fast sampling rates of up to 100 000 samples per second and a long battery life of up to 150 hours between charging.

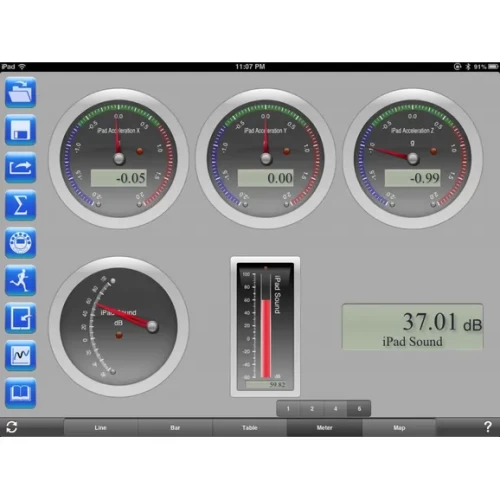

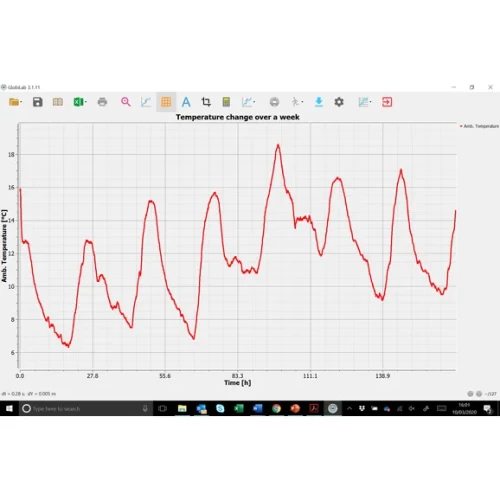

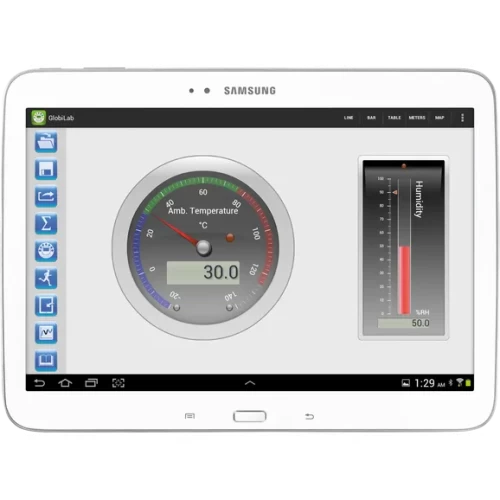

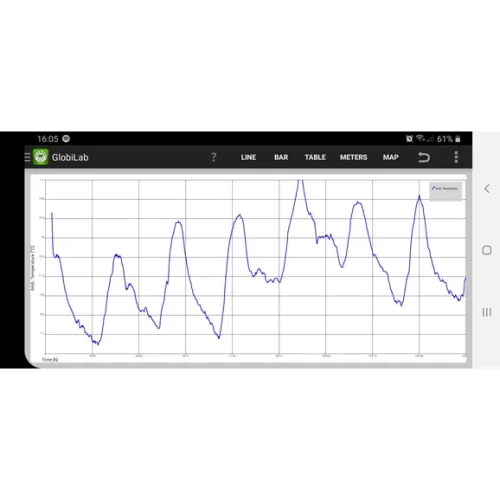

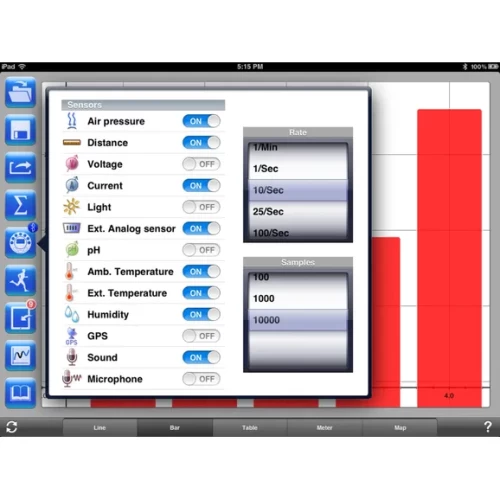

A Graphic analysis software available for Windows Android and MAC helps students to display and analyse the SensorDisc data on a variety of displays such as gauges line graphs bar graphs tables and even as a layer of measurements in Google Maps. The software is free to download from our website.

Pedagogic material and experiment guides are available in all subjects: Biology Chemistry Physics and Environmental Sciences.

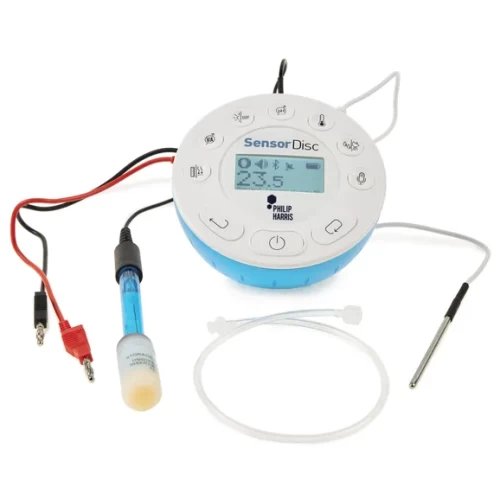

SensorDisc offers BlueTooth or USB connectivity and is supplied with a stainless steel external temperature probe 2 x test leads for voltage and current pH electrode and air pressure tube.

Other available external Sensors include:

• Carbon Dioxide (B8R08201)
• Photogate (B8R08200)
• Respiration (PP00050562)
• Wireless Force & Accelerometer (PP00050561)
• Current Sensor -250 - +250mA (PP00050564)
• Voltage Sensor -10 - +10V (PP00050563)
• Magnetic Field (PP00050337)
• Heart Rate (PP00050336)

A charging Tray which can store and charge up to 8 SensorDisc units is also available (B8R08191).
